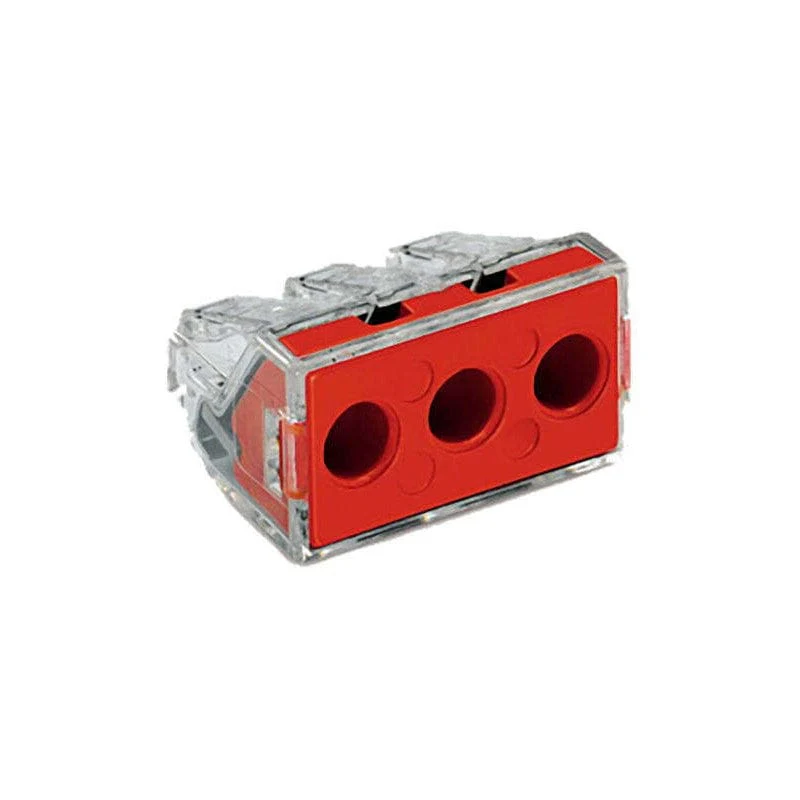

Wago Push Wire Connector 3-Conductor Terminal Block Housing - 773-173
Wago Push Wire Connector 3-Conductor Terminal Block Housing - 773-173
The Wago 773 range features a series of push on wiring connectors that speed up wiring times and reduce space inside junction boxes. They are suitable for use with stranded and solid cables, they are great for lighting installations and general wiring.
Available in 2 to 8 port versions, they are suitable for cable sizes from 0.75mm² up to 2.5mm².
Product Overview:
- Current rating: 24A
- Cable conductor sizes:
Solid conductor size: 0.75 - 2.5 mm² / 18 - 12 AWG
Stranded conductor size: 1.5 - 2.5 mm² / 16 - 12 AWG - Push in cage clamp connectivity
- Copper aluminium terminals
- Cable strip length 12mm
- Max voltage: 400V
- Maximum ambient temperature 60 ⁰C
Original: $22.75
-65%$22.75
$7.96Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Wago Push Wire Connector 3-Conductor Terminal Block Housing - 773-173
The Wago 773 range features a series of push on wiring connectors that speed up wiring times and reduce space inside junction boxes. They are suitable for use with stranded and solid cables, they are great for lighting installations and general wiring.
Available in 2 to 8 port versions, they are suitable for cable sizes from 0.75mm² up to 2.5mm².
Product Overview:
- Current rating: 24A
- Cable conductor sizes:
Solid conductor size: 0.75 - 2.5 mm² / 18 - 12 AWG
Stranded conductor size: 1.5 - 2.5 mm² / 16 - 12 AWG - Push in cage clamp connectivity
- Copper aluminium terminals
- Cable strip length 12mm
- Max voltage: 400V
- Maximum ambient temperature 60 ⁰C
