Manrose MF150T 150mm In-Line Mixed Flow Extractor Fan with Timer - Return Unit

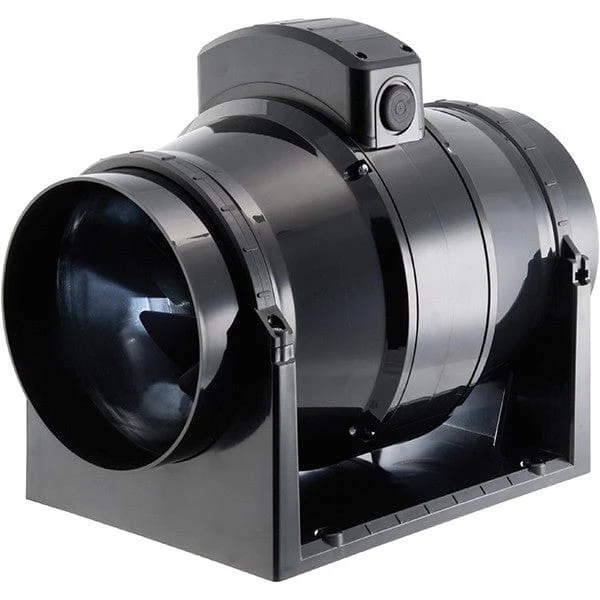

Product image 1

Manrose MF150T 150mm In-Line Mixed Flow Extractor Fan with Timer - Return Unit

Manrose MF150T 150mm In-Line Mixed Flow Extractor Fan with Timer


This Manrose in-duct mounted mixed flow fans have been designed to produce higher working pressures for applications that require high air flows, with low relative noise. Mixflo fans can be mounted in a variety of applications as shown and are suitable for use with either rigid or flexible ducting.


It features high-quality ball bearings, long life motors, continuously rated and warranted for a minimum of 30,000 hours or 3 years. Easy installation and maintenance with the fan assembly easily removed from rigid ducting installations using the specially designed construction.


Specifications

  • RPM High: 2400
  • RPM Low: 1700
  • Wattage High: 48
  • Wattage Low: 42
  • Maximum Airflow (m3/hr) High: 500
  • Maximum Airflow (m3/hr) Low: 400
  • Maximum Airflow (l/s) High: 138
  • Maximum Airflow (l/s) Low: 111
  • Maximum Pressure (Pa) High: 360
  • Maximum Pressure (Pa) Low: 320
  • dB(A) 3m* High: 35
  • dB(A) 3m* Low: 31
  • Max Operating Temp ºC: 40
  • Hole Size: 6"
$32.97

Original: $94.20

-65%
Manrose MF150T 150mm In-Line Mixed Flow Extractor Fan with Timer - Return Unit—

$94.20

$32.97

Product Information

Shipping & Returns

Description

Manrose MF150T 150mm In-Line Mixed Flow Extractor Fan with Timer


This Manrose in-duct mounted mixed flow fans have been designed to produce higher working pressures for applications that require high air flows, with low relative noise. Mixflo fans can be mounted in a variety of applications as shown and are suitable for use with either rigid or flexible ducting.


It features high-quality ball bearings, long life motors, continuously rated and warranted for a minimum of 30,000 hours or 3 years. Easy installation and maintenance with the fan assembly easily removed from rigid ducting installations using the specially designed construction.


Specifications

  • RPM High: 2400
  • RPM Low: 1700
  • Wattage High: 48
  • Wattage Low: 42
  • Maximum Airflow (m3/hr) High: 500
  • Maximum Airflow (m3/hr) Low: 400
  • Maximum Airflow (l/s) High: 138
  • Maximum Airflow (l/s) Low: 111
  • Maximum Pressure (Pa) High: 360
  • Maximum Pressure (Pa) Low: 320
  • dB(A) 3m* High: 35
  • dB(A) 3m* Low: 31
  • Max Operating Temp ºC: 40
  • Hole Size: 6"
